Plastic load carrier:

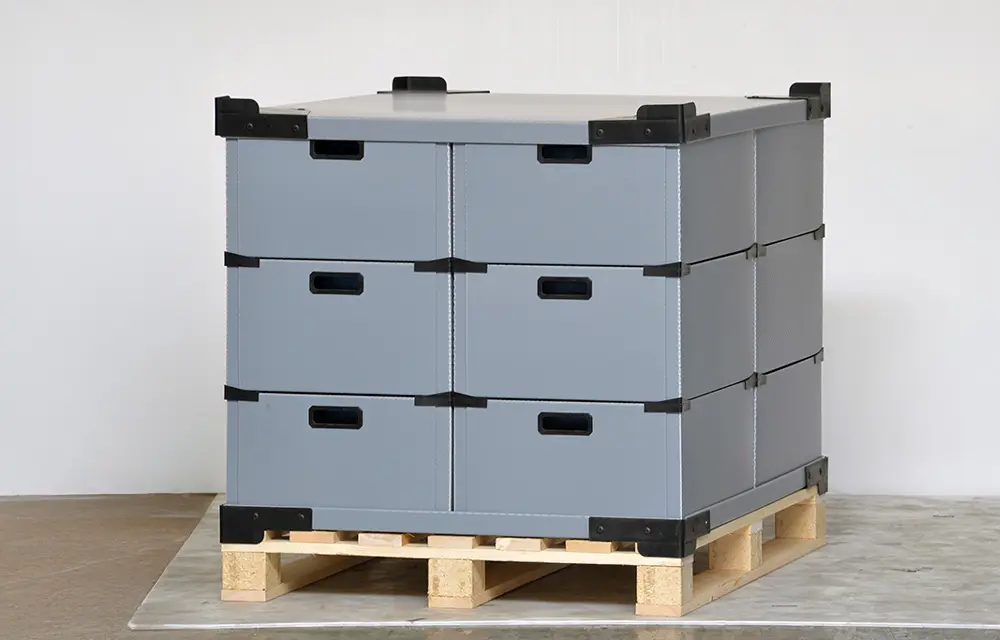

LS-Ultra Light Box – super light, super affordable

Product details

Takes a load with an economical one-piece wall assembly.

The patented ECO-Box combines load carrying capability and economical cost with an innovative design. Itself being a lightweight, spray water repellent stacking system with form locking wall guides without additional top cover stacking frame, making it ideal for middle-weight solutions. All sizes available complete with a plethora of options make this a multi-purpose solution for individual requirements.

  • Lightweight
  • All sizes available
  • Economic to assemble without tools
  • As many flexible type and number of hand grips as required

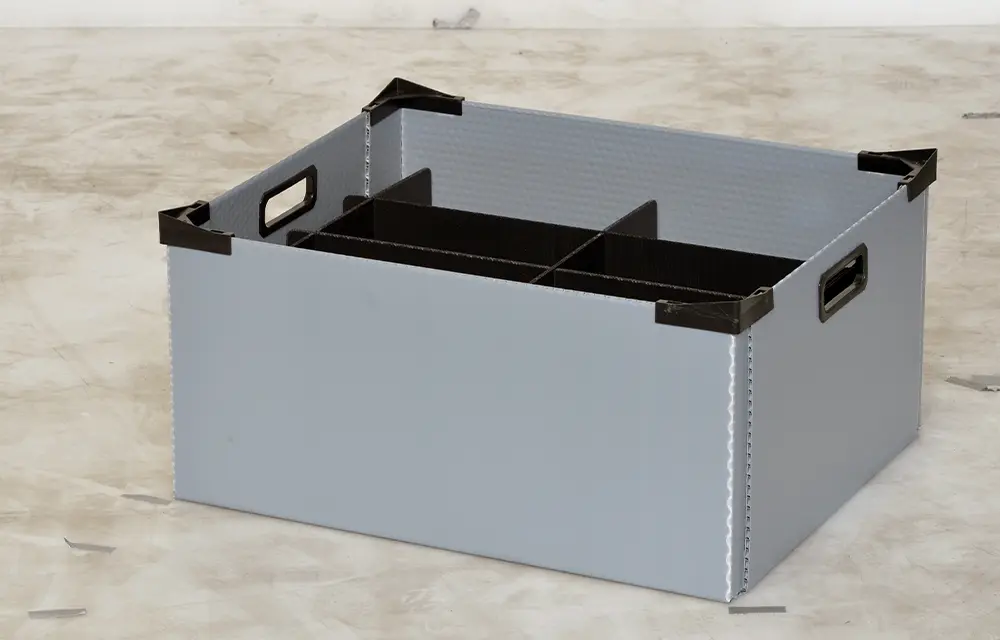

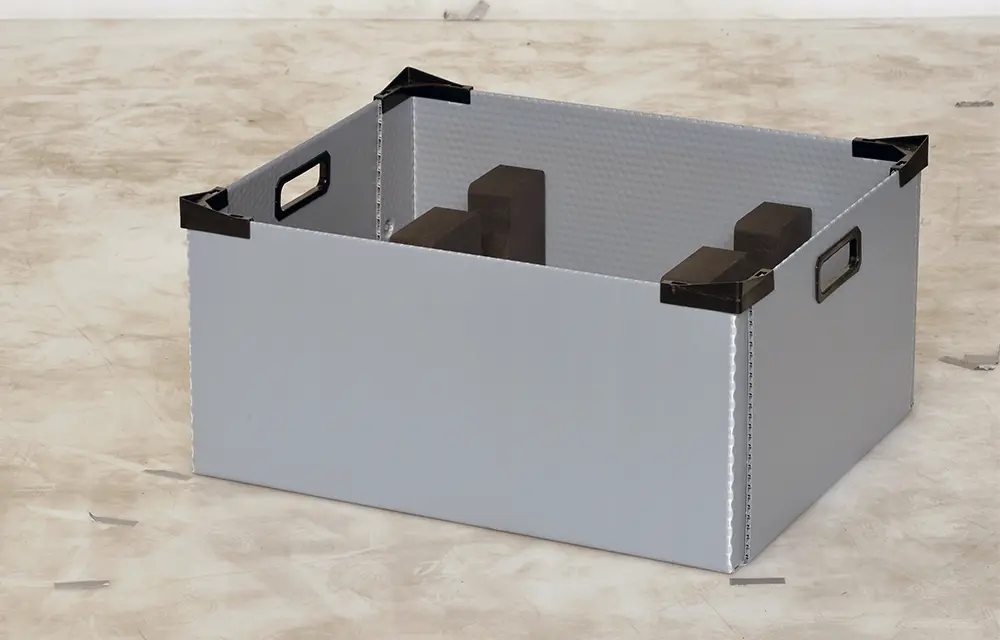

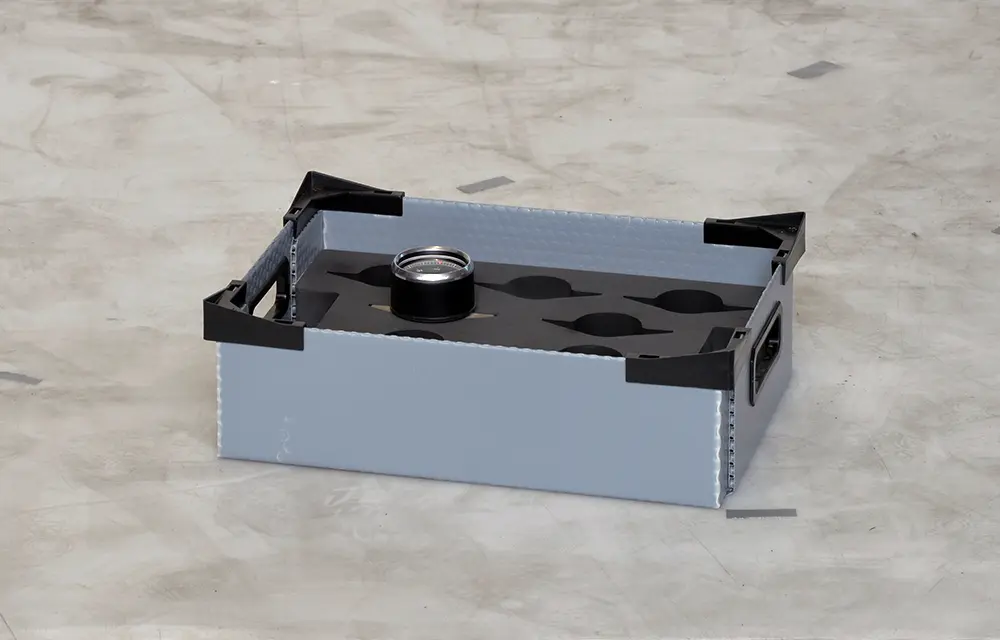

  • Combined with inserts or compartments
  • Spray water repellent stacking system with angled flanks

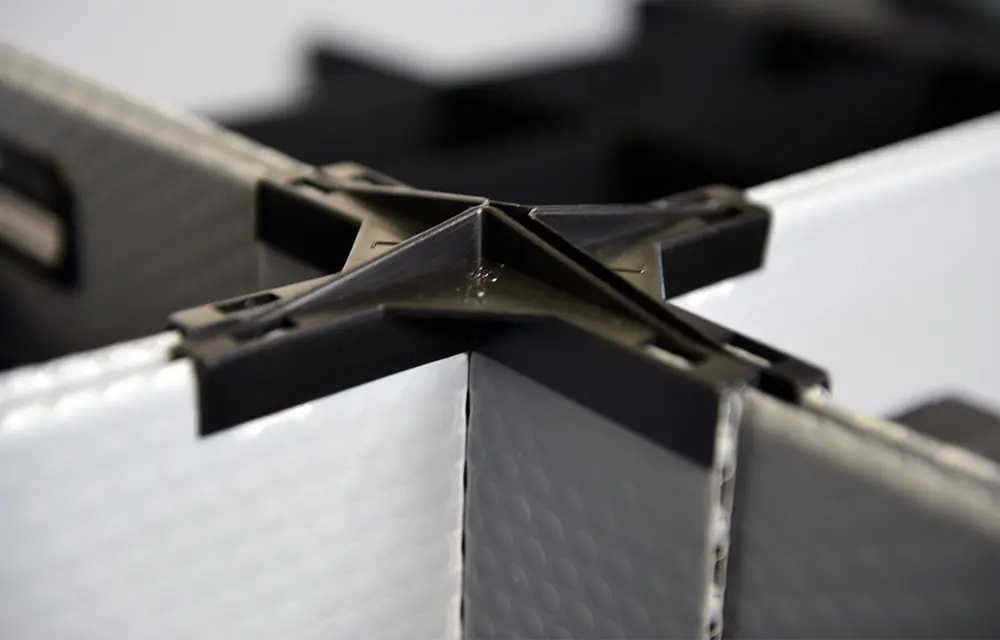

  • Keyed wall guides prevent weight distortion
  • Long sides with reinforcement for additional carrying strength
  • Twin wall polycarbonate side walls in various colours and qualities
  • Names with labels or screen printing available
  • ESD version available in black
Arrange a consultation

Technical data

Stability and load capacity

Load tests show the extraordinary stability and payloads that our load carriers can handle under test conditions. The tables show results for selected product varieties.

LS-Ultralight-Box
50 kg
LS-Light-Box
300 kg
LS-Eco-Box
600 kg
LS-HD-Box
900 kg
LS-HD-Box with aluminium reinforcement
1800 kg
Product Test procedure Temperature Load
LS-Ultralight-Box CP5 / 1000
CP5 / 1500		 50°C
50°C		 50 kg
50 kg
LS-Light-Box CP5 / 1000
CP5 / 1500		 50°C
50°C		 200 kg
300 kg
LS-Eco-Box CP5 / 1000
CP5 / 1500		 50°C
50°C		 500 kg
600 kg
LS-HD-Box CP5 / 1000
CP5 / 1500		 50°C
50°C		 800 kg
900 kg
LS-HD-Box
with aluminium reinforcement		 CP5 / 1000
CP5 / 1500		 50°C
50°C		 1,400 kg
1,800 kg
